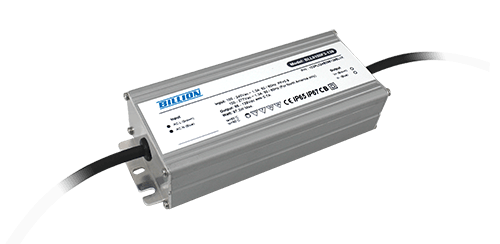

F2 100W LED Driver Series

Universal Input Voltages
Billion F2 100 LED Driver series features high voltage/low current output, universal voltage(90~295Vac) input, IP67 dust and water resistant aluminum exterior, high efficiency, high PF value and 4KV surge protection(IEC 61000-4-5), which can operate normally in the severe environment from -40~60 °C. The series supports a variety of outdoor applications including Street light, Industrial lighting (mining lamp and patio lamp), landscape lighting (flood light, projection lamp and LED wash wall light). Meanwhile, the series achieves the goal of smart lighting by supporting 1-10V, PWM, resistive intelligent dimming and Billion LCMS-Smart Streetlight Management Solution.

Key Features & Benefits

​​Features
  • Input: 90 ~ 295 Vac
  • Power Factor: >0.98 at 115 Vac /  0.95 at 230 Vac at rated power
  • Leakage Current: < 0.5mA at 230 Vac/50Hz
  • Protection: OTP / OCP / OVP / SCP
  • Operating Temperature: -40°C ~ 60°C at rated power
  • Operating Humidity: 10% ~ 95% RH non-condensing
  • MTBF: 300K hour min. MIL-HDBK-217F (25°C)
  • Three-in-One dimming control (PWM, 1~10V, or resistance)
  • Meet 4kV surge-protection standard IEC61000-4-5
  • Output current can be adjusted via built in variable resistor (Please contact Billion for more details)
Model No. BLL0100F2-190 BLL0100F2-139 BLL0100F2-143 BLL0100F2-096 BLL0100F2-072
DC Voltage Range 114 ~ 190V 86 ~ 139V 85 ~ 143V 57 ~ 96V 45 ~ 72V
Rated Current 0.53A 　0.7A 　0.7A 　1.05A 　1.4A
Efficiency (Max.) 93%
Rated power 100.7W 98W 100.1W 100.8W 100.8W
Ripple and Noise (Max.) 7 1V
Current Tolerance ±5%
Voltage Tolerance ±10%
Start Up Time (Max.) 2000ms/115 Vac and 1000ms/230 Vac at rated power
Dimension (L*W*H) 207mm × 68mm × 39mm
Weight ≒1000g

 Application Diagram

Specifications

Electrical Specifications
Input
Power Factor
Leakage Current
Protection
Class II isolation power
Operating Temperature
Operating Humidity
MTBF
