Fusio

Commercial & Industrial Energy Storage Cabinet

215kWh/258kWh/344kWh

5 years of warranty, extendable up to 20 years

The liquid cooling system offers high thermal stability, multi-stage fire protection, NFPA 855 compliance, and a Battery Management System (BMS) for excellent thermal and safety management, assisting factory owners and heavy electricity users in meeting renewable energy capacity obligations.

Product Specification

Model Type Fusio 215kWh Fusio 258kWh Fusio 344kWh
Cell Cell Chemistry Type LFP LFP LFP
Nominal Capacity 280 Ah (0.5P、25℃) 280 Ah (0.5P、25℃) 280 Ah (0.5P、25℃)
Nominal Energy 896 Wh (0.5P、25℃) 896 Wh (0.5P、25℃) 896 Wh (0.5P、25℃)
Nominal Voltage 3.2V 3.2V 3.2V
Module Module Configuration 1P48S 1P48S 1P48S
Nominal Capacity 280 Ah (0.5P、25℃) 280 Ah (0.5P、25℃) 280 Ah (0.5P、25℃)
Nominal Energy 43 kWh (0.5P、25℃) 43 kWh (0.5P、25℃) 43 kWh (0.5P、25℃)
Nominal Voltage 153.6V 153.6V 153.6V
Cabinet Cabinet Configuration 1P240S 1P288S 1P384S
Module Quantity 5 6 8
Nominal Energy 215 kWh 258 kWh 344 kWh
Nominal Voltage 768 VDC 921 VDC 1228 VDC
Operation Voltage 600 ～ 876 VDC 720 ～ 1051 VDC 960 ～ 1401 VDC
System Energy Efficiency ≧94% ≧94% ≧94%
Nominal Charge/Discharge Rate 0.5P 0.5P 0.5P
BMS Communication CAN CAN CAN
Noise Level ≦75dB ≦75dB ≦75dB
Thermal Management Liquid Cooling Liquid Cooling Liquid Cooling
Coolant 50%Water & 50%Glycol 50%Water & 50%Glycol 50%Water & 50%Glycol
Coolant Volume ～ 11L ～ 11L ～ 11L
IP Level IP55 IP55 IP55
Operation Temperature －30℃ ～ 50℃ －30℃ ～ 50℃ －30℃ ～ 50℃
Storage Temperature －20℃ ～ 35℃ (suggested) －20℃ ～ 35℃ (suggested) －20℃ ～ 35℃ (suggested)
Dimensions (L x W x H) 1,300 x 1,300 x 2,350 mm 1,300 x 1,300 x 2,350 mm 1,300 x 1,300 x 2,350 mm
Total Weight ≦2.6T ≦2.9T ≦3.5T
Compliance Standards IEC62619、IEC60730-1、UL1973、UL9540A、UN38.3

* Billion assumes no liability or responsibility for any omissions, misstatements, or non-factual statements (whether express or implied) in this product specification. Please contact sales representative for advanced information.

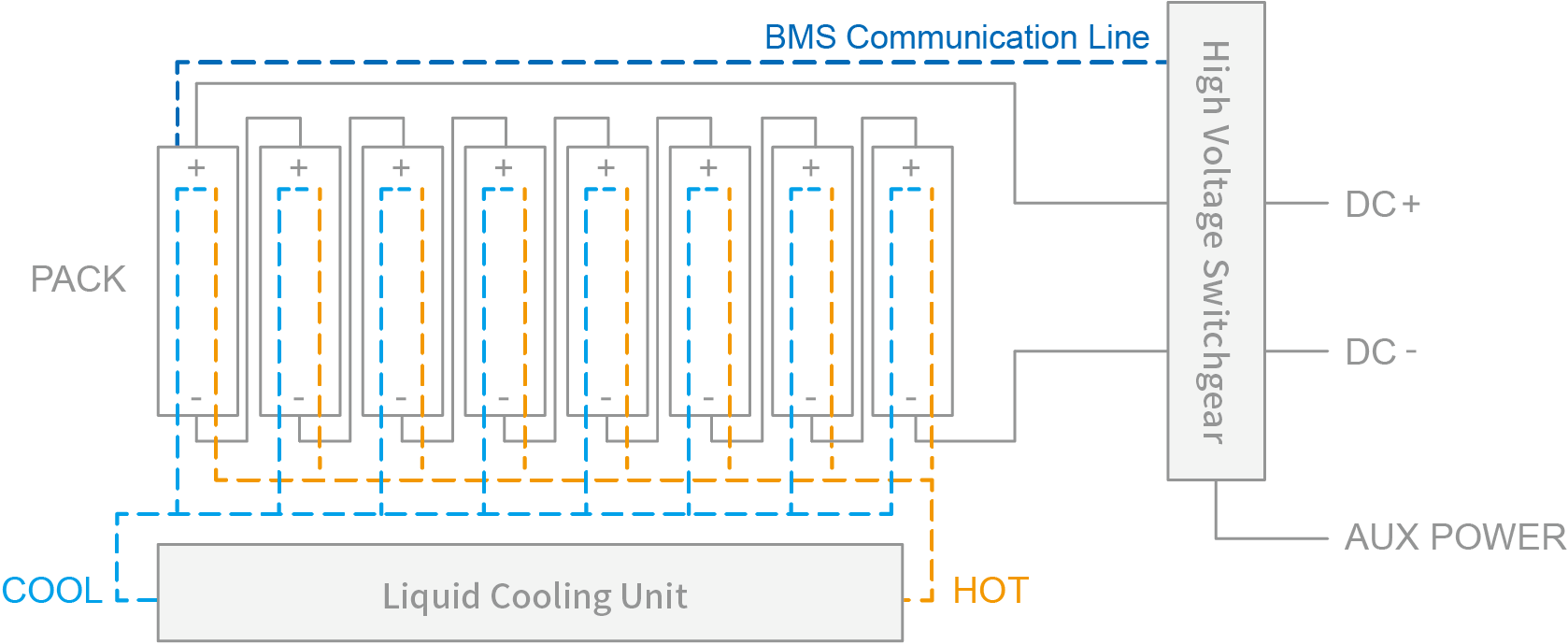

Component Function Diagram

Product Features

Active Safety

  • System-level aerosol firefighting
  • Pack IP67 protection, system IP55 protection
  • Highly integrated: including thermal management system, fire protection system, BMS, etc.

Compact & Flexible

  • High power density, covering an area of only 1.3m²
  • System integrated design, flexible transportation & fast installation
  • Support parallel connection of multiple cabinets

Smart & Efficient

  • Real-time health & work status tracking
  • Precise thermal management, ensuring temperature difference of cells inside each pack ＜3°C
  • System energy efficiency ≧94%
