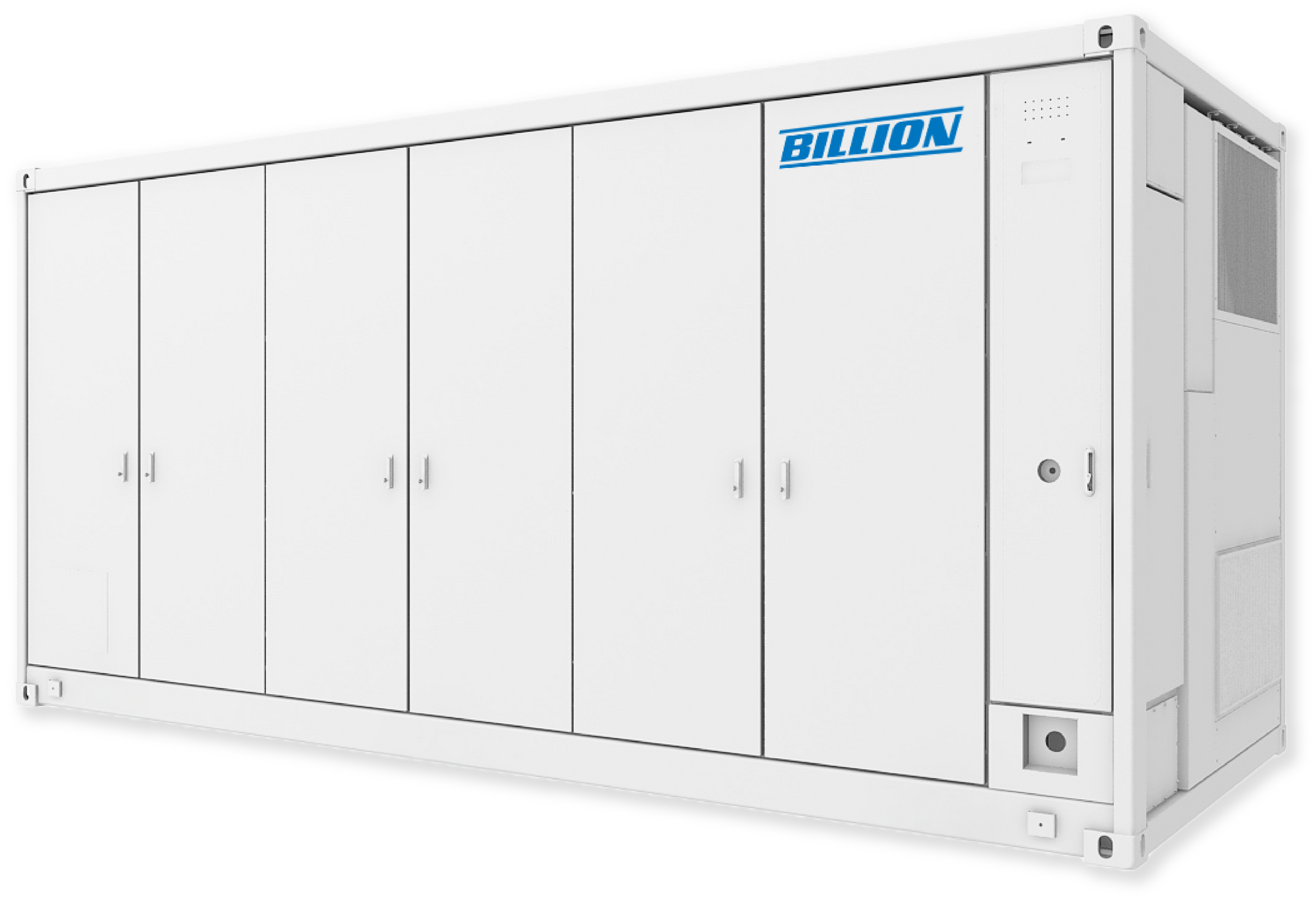

Fusio 5.015MWh

Liquid-Cooling Battery Energy Storage System

20ft Container

Liquid-cooled battery storage system based on prismatic LFP ESS cells 314 Ah with the highest cyclic lifetime

Improved safety characteristics and specially optimised for the highest requirements on safety, reliability and performance.

Suitable for industrial, utility, and grid serving applications, etc.

Product Features

Integration & Flexibility

  • Pre-configured and tested to minimize on-site labor and shorten project duration
  • Up to 4 containers connected in 1 PCS, support 2~8h application
  • Flexible layout, support back to back and side by side
  • Support bottom and string and centralization PCS

High Safety

  • Liquid cooling for high thermal stability
  • Multi-stage fire protection, NFPA 855 compliant
  • LFP cells with high cyclic lifetime
  • Dedicated cell monitoring and protection system

Levelized Cost of Storage

  • Excellent thermal management improves energy throughput by ensuring optimal operating temperature
  • Highly integrated: including thermal management system, fire protection system, BMS, etc.
  • Supports back to back and side by side installations

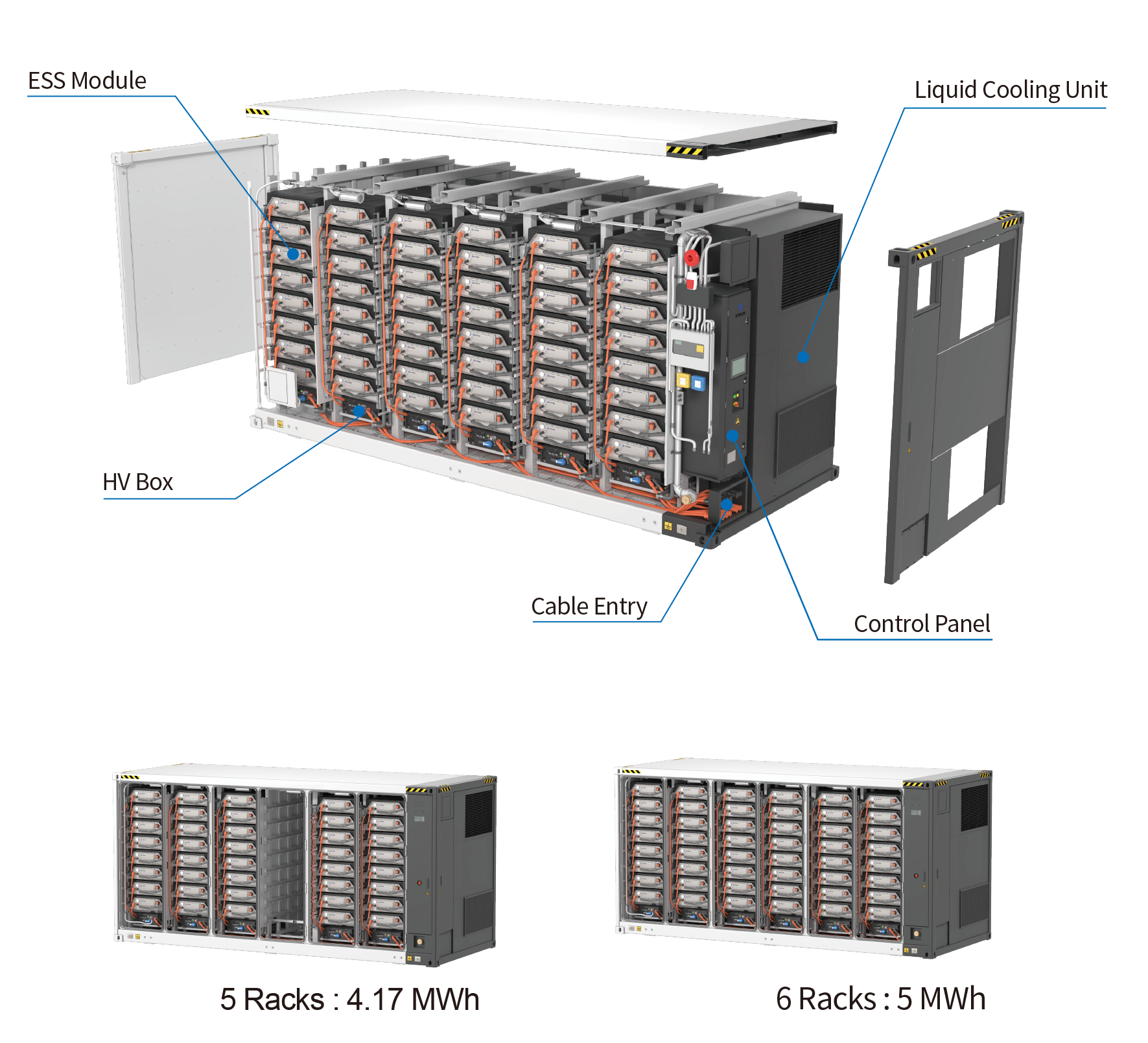

Exploded Diagram

System Specification

Model Type Fusio 5.015 MWh
General Specifications Battery Type LFP314-2P52S LFP314-2P52S
No. of Battery Modules 48 (6 x 8)
Configuration 12P416S
Cooling Method Liquid Cooling
BMS Communication CAN, RS485, Ethernet
Gravimetric > 111 Wh/kg
Volumetric > 117 Wh/l
Application Altitude ≤ 4,000 m
Electrical Nominal Voltage Container 1,331.2 V
Operating Voltage Container 1,123.2 ～ 1,497.6 V
Nominal Energy Container 5,015.96 kWh
Nominal Charge 0.5 P
Discharge Rate 0.5 P
Round Trip Efficiency > 94 %
Mechanical Dimensions (L x W x H) 6,058 x 2,438 x 2,896 mm
Weight Container (20 ft.) < 45,000 kg
Protection Level IP55
Temperature Range Operating -30 °C ～ 55 °C
Storing (recommended) -20 °C ～ 35 °C
Compliance Standards IEC 62619, IEC 62477, IEC 63056, IEC 61000, UL 1973, UL 9540A, NFPA 855, UN 38.3, RoHS, REACH, Cobalt free
