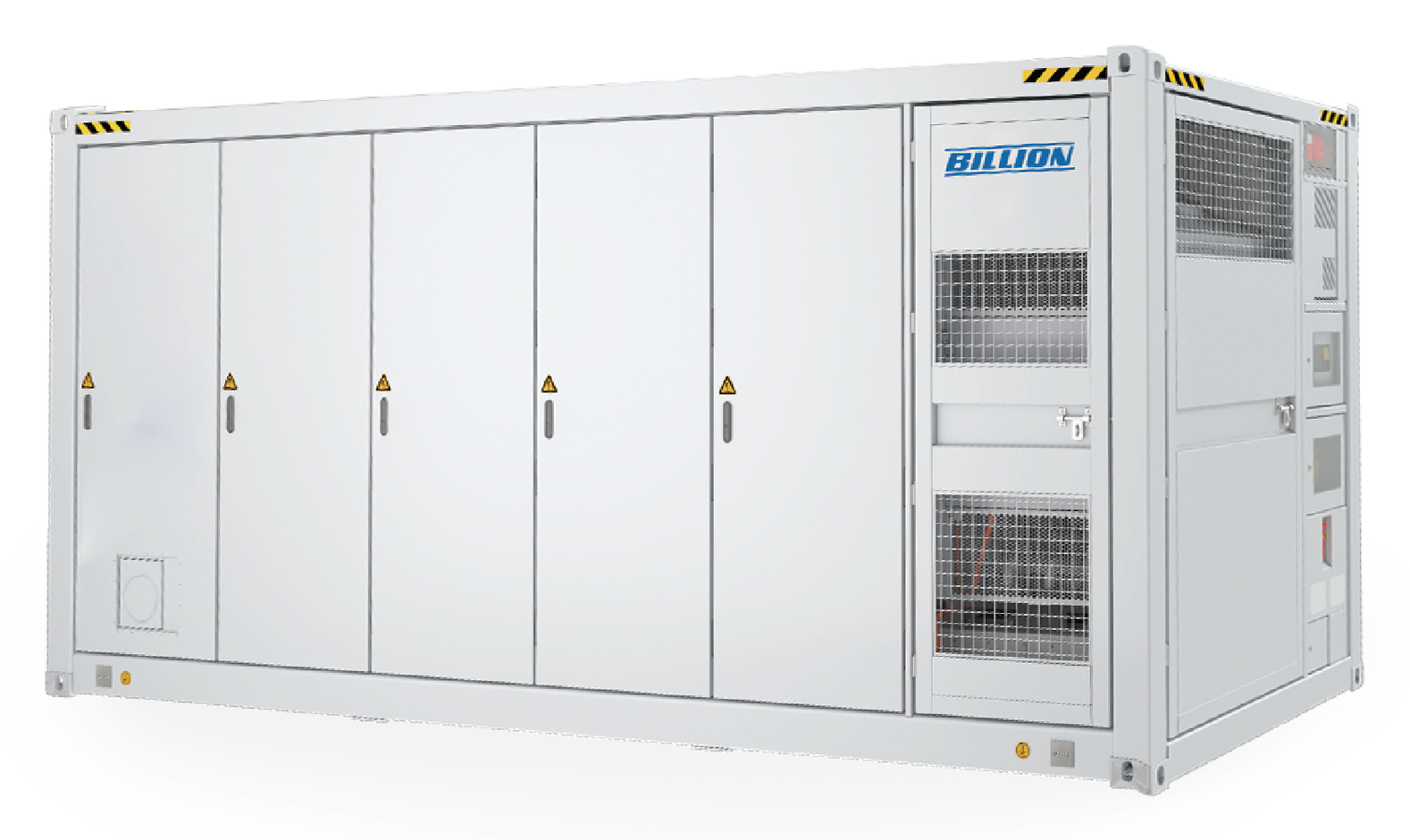

Fusio 3.44MWh

Liquid-Cooling Battery Energy Storage System

20ft Container

Liquid-cooled battery storage system based on prismatic LFP ESS Cells 280 Ah with the highest cyclic lifetime

Improved safety characteristics and specially optimised for the highest requirements on safety, reliability and performance.

Suitable for industrial, utility, and grid serving applications, etc.

Product Features

Integration & Flexibility

  • Pre-configured and tested to minimize on-site labor and shorten project duration
  • Up to 4 containers connected in 1 PCS, support 2~8h application
  • Flexible layout, support back to back and side by side
  • Support bottom and string and centralization PCS

High Safety

  • High thermal stability based on liquid cooling
  • Multi-stage, active fire protection system, compliance to NFPA855
  • Use of highly safe prismatic LFP cells

Levelized Cost of Storage

  • Excellent thermal management improves energy throughput by ensuring optimal operating temperature
  • Highly integrated: including thermal management system, fire protection system, BMS, etc.

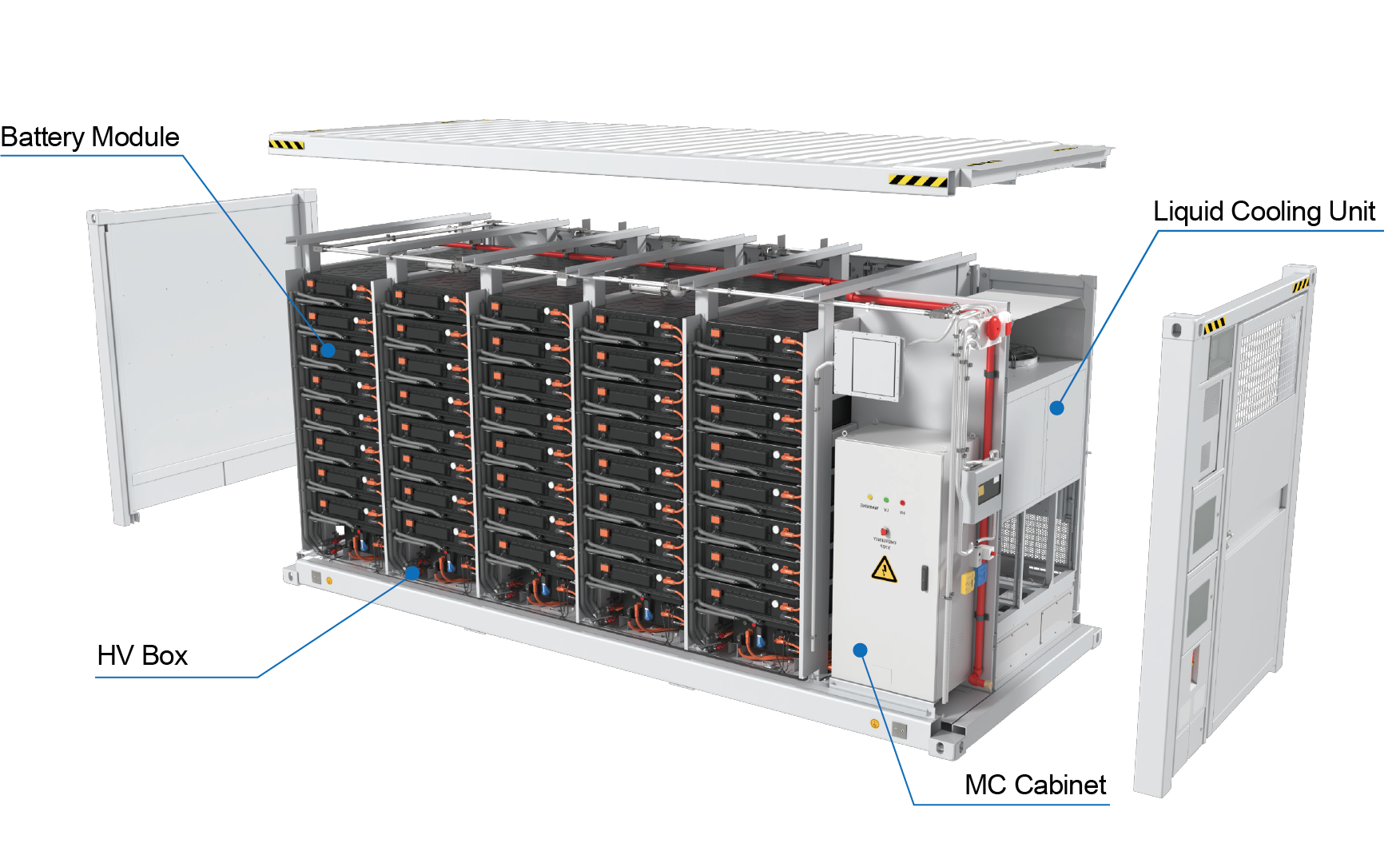

Exploded Diagram

System Specification

Model Type Fusio 3.44 MWh
General Specifications Battery Type LFP2801P48S
No. of Battery Modules 80 (10 x 8)
Configuration 10P384S
Cooling Method Liquid Cooling
BMS Communication CAN, RS485, Ethernet
Gravimetric > 101 Wh/kg
Volumetric > 80 Wh/l
Application Altitude ≤ 3,000 m
Electrical Nominal Voltage Container 1,228.8 V
Operating Voltage Container 960 ～ 1,401.6 V
Nominal Energy Container 3,440.64 kWh
Nominal Charge Rate 0.5 P
Nominal Discharge Rate 0.5 P
Round Trip Efficiency > 94 %
Mechanical Dimensions (L x W x H) 6,058 x 2,438 x 2,896 mm
Weight Container (20 ft.) < 34,000 kg
Protection Level IP55
Temperature Range Operating -30 °C ～ 50 °C
Storing (recommended) -20 °C ～ 35 °C
Compliance Standards IEC 62619, IEC 62477, IEC 63056, IEC 61000, UL 1973, UL 9540A, NFPA 855, UN 38.3, RoHS, REACH, Cobalt free
