Serial M2M communication solution supporting SCADA and MODBUS over TCP for Oil & Gas application

PDF Download

Executive Summary

Information transmission is critical in Oil & Gas field. Any minor error may cause a serious consequence. A system integrator in North America provides Oil & Gas customer an advanced LTE solution to monitor and manage the equipment remotely in the entire oil field to prevent any abnormal operating condition. SCADA (Supervisory Control and Data Acquisition) devices and sensors are installed on the pipeline to measure pressure, flow, and potential leaks. These sensors could send the metrics back to the central control console and deliver real-time information to pipeline manager.

Challenges

The Oil & Gas sector requires high bandwidth, low latency, and secure and reliable communications system in the most remote locations. As the Oil & Gas companies have to make the time-critical decision in real-time, the communication devices must support high availability and security. Thus, the system integrator was looking for a LTE solution to optimize the stability and the security of data transmission between sensors and control center, as well as to boost system efficiency and minimize the occurrence of connection failures.



The communication device must support Serial communication with MODBUS all over the TCP protocol to transmit data from sensors to the central control console. MODBUS was designed to provide client-server communication between devices such as PLC, HMI, Control Panel, Moto Driver, Card Reader, Meters, I/O device, etc. in different networks on the serial port.

How Billion Solution Helped

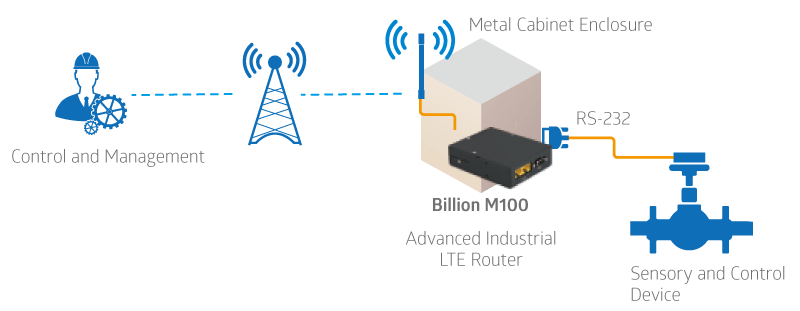

Billion provides M100, Industrial 3G/4G Router, to be installed next to SCADA equipment as data acquisition device and protocol converter. M100 can support SCADA equipment directly from its series port and diminish the need for connected switch between two devices. Meanwhile, M100 supports series communication with MODBUS over the TCP protocol and can deliver the pipeline monitoring data to control center without interruption, allowing the pipeline manager to make crucial decisions and operate more efficiently to meet their specific application needs.
M100 supports IPSec VPN protocols to enable users to establish up to 16 VPN tunnels simultaneously in which all the data will be encrypted and transferred safely. The VPN protocol can dramatically enhance the stability and security of data transmission to prevent data tampering and loss.

“M100 is designed to target the mission-critical applications. By using this advanced Industrial 3G/4G Router, our system integration customers can receive in-time information, make critical decisions, and save significant money from remotely managing the equipment in the entire Oil & Gas field", said Project Manager at one of the largest Oil & Gas system integration companies in the North America.

Benefits

High Availability and Redundancy

M100 supports both GbE EWAN and LTE wireless connections. Either wired or wireless connection can be setup flexibly to the primary or backup WAN port. M100 monitors the primary and backup connection for fully automated failover. When the primary WAN interface fails, the secondary WAN interface will automatically back up the connection, allowing WAN interface to restore in time and minimize service interruption.



Highly secured and protected

M100 supports IPSec VPN to build up to 16 private and encrypted transmission tunnels in which secure information transmission is guaranteed between the managed endpoint and data center over the public internet.

Billion M100

Advanced Industrial LTE Router

  • Offers LTE broadband connectivity (3G Fallback is optional)
  • Multi-WAN interfaces: LTE and Gigabit Ethernet WAN for
  • network resilience and reliable connectivity
  • RS-232/RS-485 Serial data connectivity
  •  (M100: RS-232, M150: RS-232/RS-485)
  • GPS option for real-time asset tracking and location
  • data-based applications
  • Secured VPNs (IPSec, GRE, LT2P, PPTP, OpenVPN)
  • Dynamic Routing Protocols (BGP, OSPF)
  • Small form factor, fits in the palm on your hand
  • Simplified deployments, quickly mounted discretely anywhere

Solution

A series of rugged industrial-grade LTE broadband routers were designed for in-vehicle applications such as smart buses, public safety (police cars, fire trucks, ambulances, etc.) and fleet management. Their functions include dual LTE interfaces, WiFi hotspots, GPS and a vibration-resistant design that enables them to provide high speed LTE network connections in moving vehicles. Network surveillance cameras and other related devices can also be integrated to provide real-time bidirectional video and audio transmissions, as well as data access functions.

Learn More

Designed for M2M and IoT communication, our products integrate LTE technology, dual WAN ports, automatic failback, RS-232/RS-485 interfaces and Modbus, as well as support for VPN (IPSec, PTP, 2TP, GRE and OpenVPN) to ensure data transmission security.Applications include industrial control, real-time monitoring, data collection, maintenance and other vertical applications in the oil and gas industry to improve communication efficiency, protect corporate assets and ensure service consistency.

Learn More

Our outdoor LTE fixed-wireless routers feature superior antenna design for optimized LTE performance, industrial-grade IP67 protection, and excellent water and dust resistance for reliable operation even in harsh outdoor environments.The stable network connection, wide service range and excellent system performance provide dependable critical communication networks for remote locations such as mines and oil & gas sites.

Learn More

We provide optimal network communication solutions for electronic transactions in retail stores, chain stores, POS systems, ATMs, multi-purpose kiosks and vending machines.Auto failback/failover ensures uninterrupted network connectivity, while IPSec encryption guarantees data security and high-speed data encryption.


The Gigabit ethernet port can also be connected to other high-speed networks for high-efficiency data transmission.

Learn More

All-in-one (VDSL2, ADSL2+, 3G/4G LTE, FIBER, Ethernet AN), multi-function internet devices allow service providers to offer a host of features, and are equipped with a multitude of LAN interfaces (gigabit LAN, 802.11 b/g/n/ac, VoIP and USB) to help home users easily set up their internet connection to enjoy high-speed, high-definition internet TV and realistic online gaming experiences.


In addition to broadband internet devices, we also provide a variety of broadband routers with multiple cybersecurity functions (VPN and Firewall). This combination of hardware and software allows network service providers and telecom operators in all countries to provide end customers with multimedia services by leveraging our high-quality CPE.

Learn More
